Marine diesel heaters provide reliable, compact heat for boats, cabins, and mobile rigs. This guide compares five relevant Amazon listings—both complete heaters and a marine exhaust fitting—so you can match heater type, output, and installation style to your vessel or project.
| Product | Brand | Key Feature |
|---|---|---|
| Dickinson Marine Newport Diesel Bulkhead Mount Heater | Dickinson Marine | Bulkhead Mount, 6,500–16,250 BTU |
| 7kW Diesel Air-Water Heater | ZBJinG | Air & Water 2-in-1 Heating |
| HCALORY 8KW Portable Diesel Heater | HCALORY | Toolbox Design With Built-In 6L Tank |
| LF Bros 5KW All-in-One Heater | LF Bros | All-In-One 5KW For 12/24/110V Use |
| 316 Thru-Hull Exhaust Tip (Angled) | PTNHZ | 316 Stainless, 24mm Hose Fit |

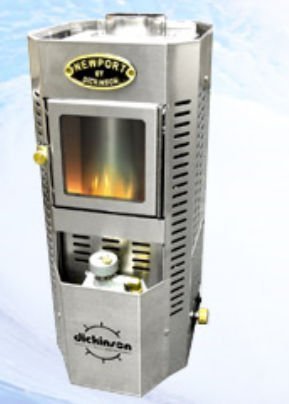

Dickinson Newport Diesel Heater
The Dickinson Marine Newport is a bulkhead-mount diesel heater designed specifically for marine use. It lists a wide heat output range of 6,500–16,250 BTU, making it suitable for small to medium cabins or enclosures. The unit accepts diesel, kerosene, or stove oil, offering fuel flexibility common to marine applications.
- Heat Output: 6,500–16,250 BTU suitable for cabin heating.
- Fuel Types: Diesel, kerosene, or stove oil for marine fuel options.
- 12V Combustion Assist Fan: Designed for low-voltage marine electrical systems.
As a bulkhead-mounted model, the Dickinson requires through-hull routing for exhaust and combustion air; compatible exhaust fittings and corrosion-resistant materials are recommended for saltwater environments. Installation typically involves cutting a mounting aperture and routing fuel and exhaust lines to meet marine safety standards.

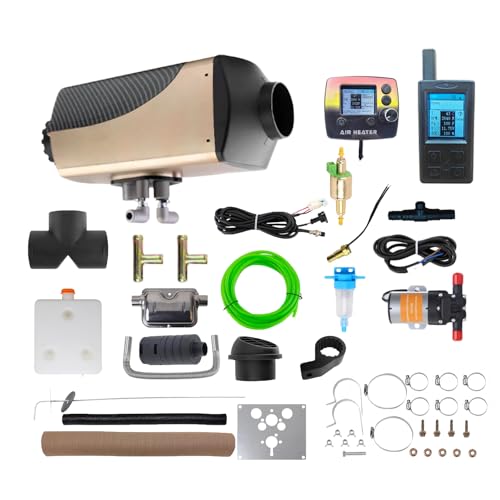

7kW Diesel Air-Water Heater
The ZBJinG 7kW unit is an air-and-water integrated heater suited for applications that need cabin heat and domestic or engine coolant heating. It’s positioned for trucks, RVs, and ships where preheating engines and providing warm air are both required.
- Two-in-One Function: Independent air and water heating output for cabin and water tank or coolant.
- Water Tank Capacity: Can heat to support >40 liters depending on installation.
- Control & Diagnostics: LCD display plus ST32 chip main board for monitoring and fault codes.
This configuration supports engine preheating to ease cold starts and reduce wear, a useful feature for marine diesel engines. Integration into a vessel’s coolant loop requires proper plumbing and heat exchanger access; follow marine-grade hose and clamp standards to avoid leaks and corrosion.
HCALORY 8KW Portable Diesel Heater
The HCALORY is a toolbox-style portable diesel heater with a built-in 6L tank and dual power options (12/24V DC and 110/220V AC). The design emphasizes portability and quick deployment for trucks, RVs, and small boats where permanent installation is not desired.
- Compact Toolbox Design: Built-in tank and handle for transport and temporary use.
- Enhanced Efficiency: Aluminum body and enlarged vents to reduce exhaust temperature and emissions.
- Dual Power Options: 12V/24V DC and 110V/220V AC for flexible power sources.
Because the HCALORY unit contains an integrated tank and exhaust, evaluate venting location and carbon monoxide risks before use inside closed compartments. For marine use, ensure open-air placement or dedicated exhaust routing outside the hull and follow USCG and local safety guidance on portable combustion devices aboard craft.
LF Bros 5KW All-in-One Heater
The LF Bros 5KW is an all-in-one diesel heater designed for plug-and-play versatility: it supports 12V, 24V, and includes a 110V transformer for fixed-power locations. The product positions itself for garage, RV, and camper use, and the compact all-in-one layout can be adapted to small vessel installations with proper ventilation.
- Power Options: 110V transformer plus 12V/24V compatibility for multi-source installations.
- Operating Range: Rated for cold environments down to -40°F with adjustable output.
- Controls: LCD and remote control included for temperature regulation.
All-in-one units reduce installation complexity since combustion, fuel tank, and blower are combined, but they still require safe exhaust routing and combustion air supply. For marine adaptation, confirm that exhaust components and hoses are marine-grade and that installation meets ventilation and safety requirements for onboard combustion devices.
316 Thru-Hull Exhaust (Angled)
The PTNHZ angled exhaust tip is a 316 stainless steel thru-hull fitting sized for 24mm (0.94″) inner diameter hose. It’s listed as compatible with many common diesel parking heaters and is intended as a corrosion-resistant exhaust termination for marine installations.
- Material: 316 stainless steel for improved corrosion resistance in saltwater environments.
- Compatibility: Fits Webasto, Planar, Eberspacher, and Chinese-style diesel parking heaters that use 24mm hose.
- Function: Provides a secure, polished exhaust outlet with angled orientation to direct exhaust away from hull.
When pairing a heater to a hull outlet, ensure the thru-hull location avoids intake areas and that the exhaust hose has a gradual route free from sharp bends. Use marine-grade clamps and check for galvanic isolation between dissimilar metals to avoid accelerated corrosion.
Buying Guide: Choosing A Marine Diesel Heater
Selecting a marine diesel heater requires balancing heat output, installation type, exhaust routing, and marine corrosion protection. Below are the key considerations and comparison perspectives to evaluate before purchase.
1. Heat Output And Sizing
Heat is typically specified in BTU or kWEstimate the heated volume (cubic feet) and insulation quality to choose capacity. Small cabins and pilot houses often need lower-output units (e.g., 5kW/4,700–17,000 BTU range), while larger saloons or poorly insulated spaces need higher outputs (7–8kW or more). Consider both cabin heating and any additional load like cockpit enclosures.
2. Heater Type: Bulkhead, All-In-One, Portable, Or Air/Water Combo
- Bulkhead/Built-In Units (e.g., Dickinson): Designed for permanent installations with separate combustion air and exhaust routing. Better for long-term marine fit-outs.
- All-In-One Units (e.g., LF Bros): Integrate tank, fan, and heater. Easier to install but still require safe exhaust placement.
- Portable/Toolbox Units (e.g., HCALORY): Useful for temporary heating or where a permanent install is impractical. Must be used with extreme caution aboard vessels—venting and CO risk are critical.
- Air-Water Combo Heaters (e.g., ZBJinG): Provide cabin heat plus water or coolant heating. Useful when you need engine preheat or hot water onboard.
3. Fuel Type And Consumption
Most marine heaters run on diesel, though some accept kerosene or stove oil. Compare fuel consumption ratings (gallons or liters per hour) and tank capacity for portable units. Lower consumption is desirable for long trips, but balance it against required heat output.
4. Power Requirements And Controls
Confirm 12V/24Vcompatibility with your vessel’s battery system. Units that include 110V/220Vsupport allow shore-power operation for marinas. Consider control options—manual knobs, LCD, remote, or Bluetooth app control—and the convenience of preheat scheduling or altitude compensation when operating at different elevations.
5. Exhaust, Thru-Hull Fittings, And Corrosion Resistance
Exhaust termination is a critical safety and durability issue. Use 316 stainless steelthru-hull tips and marine-grade exhaust hose. Choose angled or straight fittings based on hull geometry and avoid routing exhaust near ventilation intakes. Isolate dissimilar metals and use compatible clamps to reduce galvanic corrosion.
6. Safety, Ventilation, And Installation Codes
Marine heater installations must account for combustion air supply, exhaust discharge, and carbon monoxide prevention. Follow USCG, ABYC, or other local marine guidelines. Avoid placing units in sleeping compartments without adequate ventilation and CO monitoring. Professional installation is recommended for permanent installs to meet safety standards.
7. Noise And Vibration
Blower and combustion fan noise vary by model. For continuous living-space heating, compare decibel ratings if provided, and plan vibration isolation mounts to minimize noise transfer into the hull structure.
8. Maintenance And Serviceability
Consider the availability of replacement parts, service manuals, and field-serviceability for items like glow plugs, fuel pumps, filters, and control boards. Units with diagnostic displays can reduce troubleshooting time.
9. Compatibility And Accessories
Confirm hose diameters (24mm is common) and select compatible exhaust tips, clamps, and fuel lines. Air/water heaters need appropriate heat exchangers and plumbing. Evaluate whether the unit requires a separate fuel pick-up or if it includes an internal tank for portable operation.
10. Environmental And Altitude Performance
Some modern diesel heaters include automatic altitude compensationfor reliable combustion at high elevations. Look for reduced exhaust temperatures and improved combustion designs to minimize soot and emissions in confined marine spaces.
Comparison Perspectives
- Marine-Specific vs. Generic Parking Heaters: Marine-specific units often prioritize corrosion resistance and bulkhead mounting; generic parking heaters may need additional marineization.
- Permanent Install vs. Portable: Permanent installs offer safer exhaust routing and better integration; portable units are flexible but demand careful ventilation and monitoring.
- Air-Only vs. Air-and-Water: Choose air-and-water models if hot water or engine preheat is a priority; air-only units are simpler and lighter for space-limited installations.
Before purchasing, measure the compartment, confirm electrical capacity, plan exhaust routing and thru-hull locations, and review local marine safety codes. When in doubt, consult a marine technician for installation and certification guidance.
